Ice pack seal width and edge design affect far more than appearance. They influence usable fill area, flexibility near the perimeter, artwork clearance, trim tolerance, and how a buyer should validate the finished pouch. However, a wider seal is not automatically stronger, and a neat edge is not proof of leak resistance.
For B2B projects, the practical goal is to define the perimeter geometry on a drawing, match it to the film and welding process, then verify the approved construction with repeatable seal-strength, leak, and pressure tests. This guide explains what belongs in that specification without inventing a universal seam width or pass value.
On this page
What is included in ice pack edge design?
The “edge” of a reusable ice pack is a small system. Depending on the design, it can include:
- the welded perimeter seam;
- straight sides, corner radii, tabs, or shaped outlines;
- a fill-port area and its closing weld;
- intersections created by segmented or multi-chamber construction;
- the trimmed film outside the weld;
- print, label, eyelet, strap, or cover clearances; and
- tolerances that account for film, tooling, alignment, filling, and trimming.
These features should be shown on the same controlled drawing. If the buyer specifies only the overall pack dimensions, the supplier still has to guess how much space the seam, corner, and trim consume.

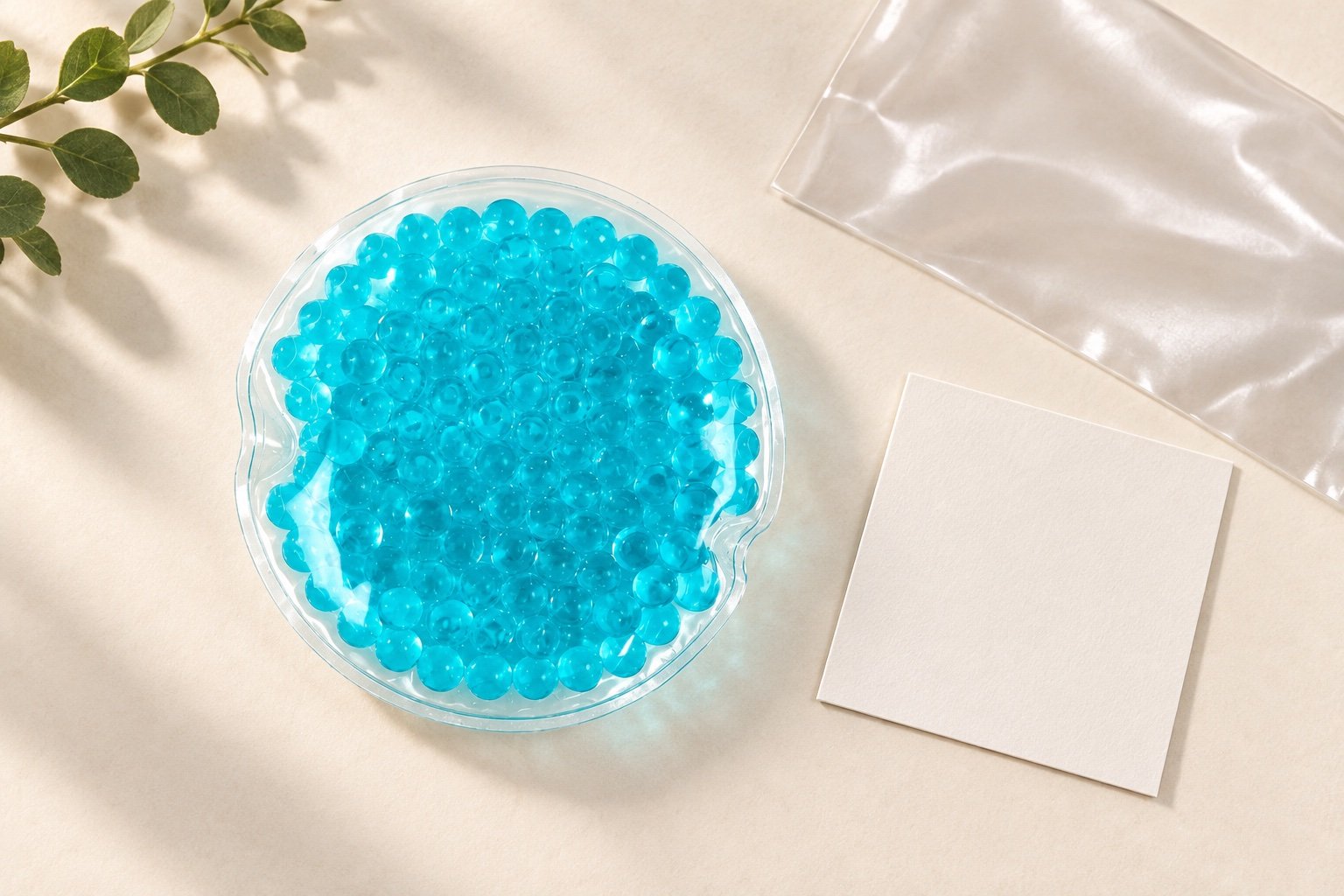

Seal width changes the usable product geometry
A perimeter weld occupies part of the flat cut size. Increasing the nominal seal width can reduce the internal fillable area unless the outside dimensions increase. That can affect fill distribution, bulge, contact area, and how the product fits a sleeve, retail box, or body wrap.
A wider visual band may also provide more room for process and trim variation, but width alone does not establish seal quality. Film chemistry, layer structure, surface condition, electrode or tooling geometry, alignment, pressure, energy, dwell, cooling, and fill contamination can all affect the finished seam. Buyers should therefore treat width as one controlled input rather than a performance claim.
How edge choices create different trade-offs
| Design choice | Potential advantage | What still needs validation |
|---|---|---|
| Wider perimeter band | More visible weld area and possible room for alignment or trim tolerance | Usable fill area, flexibility, seal strength, leak resistance, and appearance |
| Narrow perimeter band | More internal area within a fixed outside size | Process capability, trim control, minimum width, and handling robustness |
| Rounded outside corners | Less pointed geometry for handling, sleeves, and retail packaging | Tooling, radius tolerance, trim quality, fit, and finished-product testing |
| Shaped tabs or attachment points | Can support straps, hanging, or positioning | Local reinforcement, tear risk, hardware clearance, and load test |
| Segmented or multi-chamber welds | Can manage fill migration and improve conformity | Weld intersections, channel width, fill balance, flexibility, and leak testing |
| Large print close to the seam | More branding area | Print-to-weld clearance, registration tolerance, legibility, and abrasion |
These are design considerations, not guarantees. The correct combination depends on the approved material and use case. Cryozin’s custom ice pack program can use a drawing and sample brief to discuss the available geometry, while the final specification remains project-specific.
Corners, intersections, and fill ports deserve separate attention
A straight two-layer seam is not the same as a corner, layer transition, cross-weld, or fill-port closure. A peer-reviewed study of flexible-package sealing found that folded corners, layer jumps, and seal intersections can respond differently to sealing pressure and temperature. Its exact materials and settings should not be transferred to gel ice packs, but the engineering principle is useful: critical regions need their own inspection and validation.
Corner geometry
Specify both the outside corner and the welded-path radius. A smooth external outline may improve handling and sleeve fit, but the actual radius still has to be compatible with the electrode, film behavior, trim process, and product dimensions.
Weld intersections
Segmented packs add longitudinal or transverse welds that meet the perimeter or one another. The drawing should identify junction locations, channel widths, chamber-to-chamber fill balance, and any area where multiple weld passes or tooling features interact.
Fill-port closure
The final closing weld may have a different process history from the main perimeter. Buyers should ask how the port is located, protected from fill contamination, closed, inspected, and included in leak or pressure testing.
Film and welding process must be specified with the seam
A drawing cannot compensate for an incompatible sealing layer. Start with the agreed film or laminate structure, thickness range, surface treatment, print system, and filling chemistry. Then confirm that the selected welding process can create a consistent joint without unacceptable thinning, scorching, distortion, or incomplete fusion.
Two related resources explain these boundaries in more detail: the ice pack film thickness guide covers thickness as a specification input, while the RF welding compatibility guide focuses on material and process fit. Neither page supplies a universal setting; the approved production window must come from trials on the intended construction.
Use more than one test to approve the design
Different tests answer different questions. ASTM International distinguishes seal-strength, leak-detection, and burst methods:
- ASTM F88/F88M measures the force required to separate a strip containing the seal and identifies the failure mode. It is useful for process validation and control, but it does not by itself prove whole-pack integrity.
- ASTM F2096 is a destructive internal-pressurization bubble method for gross leaks. Its applicability and sensitivity need to be reviewed for the exact construction.
- ASTM F2054/F2054M uses internal air pressure and restraining plates to indicate minimum burst strength around flexible-package seals. ASTM notes that the method should be combined with other integrity or uniformity evaluations when required.
These standards are test methods, not Cryozin claims and not ready-made acceptance limits for every reusable ice pack. The buyer and supplier must define sample conditioning, fixture, pressurization or pull rate, specimen orientation, number of samples, failure classification, and pass criteria for the approved product.
What to put on an ice pack seam drawing
- Outside length and width, with tolerances
- Nominal perimeter weld width and allowed range
- Inside fill-area boundary
- Outside and weld-path corner radii
- Fill-port location, closure length, and inspection area
- Segment or chamber weld locations and widths
- Trim allowance and maximum edge overhang
- Print-safe zone and print-to-weld clearance
- Tab, hole, strap, fastener, or cover-interface details
- Film or laminate construction and thickness range
- Fill identity and nominal fill weight, subject to approved formulation
- Referenced test methods, conditions, sample size, and acceptance criteria
- Approved sample number, artwork revision, drawing revision, and change-control rule
A custom ice pack specification template helps put these fields into one buyer-controlled document. For a new shape, also review the B2B sizing guide and tooling-cost questions before sample approval.
How to review a supplier sample
- Confirm identity: match the sample to the drawing, artwork, film, fill, and revision record.
- Measure multiple locations: check each side, corners, junctions, and the fill-port closure rather than recording one width.
- Inspect the surface: record wrinkles, channels, burns, thinning, contamination, incomplete fusion, and uneven trim.
- Review function: check fill distribution, flexibility, sleeve or wrap fit, and the effect of the seam on the usable contact area.
- Apply the agreed tests: use the planned seal-strength, leak, pressure, cycling, and handling checks under documented conditions.
- Keep traceability: link results to sample ID, lot, operator or laboratory, equipment, date, and disposition.
The separate sample approval checklist, leak-testing guide, and burst-pressure overview can be referenced without duplicating their search intent. Cryozin’s quality-control page explains the broader project-control context.
Frequently asked questions
What is the best seal width for a reusable ice pack?
There is no universal best width. It depends on film construction, welding process, outside dimensions, fill area, corner and port geometry, tolerances, and the project’s validated acceptance criteria.
Does a wider seal prevent leaks?
Not by itself. Width is only one input. Material compatibility, tooling, process settings, contamination control, alignment, and critical-region geometry also affect the joint. Verify the finished product with suitable tests.
Should rounded corners be specified?
Rounded corners may suit handling, sleeves, packaging, or a desired outline, but the radius must be defined and sampled. Do not assume a shape change improves strength without comparative validation.
Can ASTM methods be listed on a purchase order?
Yes, when the method is applicable, but the purchase specification should also define the version, specimen preparation, conditions, equipment details, sample size, and acceptance criteria. A method name alone is incomplete.
Make the seam an engineering input, not a visual afterthought
A dependable edge specification connects geometry, material, process, inspection, and acceptance data. If you are preparing a custom project, send Cryozin your product drawing, outside dimensions, film preference, fill brief, target application, artwork, and required test plan. The team can identify open questions for sampling and quotation without treating an unverified seam width as a performance promise.
