When an ice pack appears to have separating layers, record the condition of the original sample before asking for a replacement material. A useful ice pack delamination report identifies the affected area, the sample and lot, the handling history, and what remains uncertain. A photograph alone cannot establish which interface failed or why.
This guide is for brand, sourcing and quality teams handing a suspected laminate problem to a supplier. It provides a complaint record and investigation questions—not a home repair procedure, a laboratory method or a report of Cryozin test results.
On this page
Describe the observation before naming a cause
Use plain descriptions such as “a lifted area on the outer face,” “a pale line beside the seam,” or “a wrinkle visible after storage.” Keep the original photographs and distinguish what was observed from what is suspected. Delamination refers to separation between bonded layers; that diagnosis still needs assessment of the actual construction.
A surface coating, a print layer, a laminate interface and the pouch perimeter are different locations. Ask the reviewer to identify which is involved. If there is also a leak, record it separately rather than treating every visible change as the leak path.
For the initial record, capture an overall view that shows the whole pouch, a closer view that locates the affected area relative to the seam or fill port, and a detail view with a scale where practical. Identify the side and orientation. Keep comparable lighting and retain the unedited files; a heavily enhanced image can make interpretation harder.
Keep sample identity and handling history together
Do not deliberately peel, cut, heat or repeat-condition the complaint sample before agreeing on the investigation plan. Those actions may change what the reviewer can examine. Follow the product instructions and your organization’s handling procedures; arrange any return or examination with the responsible supplier and quality team.
Record the sample identifier, purchase order, product configuration, available lot information and date first observed. Include the approved drawing or reference sample revision if available. If a code is missing, say so. A guessed lot number creates a false connection between the complaint and production records.
Build a short timeline: receipt, storage, preparation, use or internal evaluation, cleaning where relevant, and first observation. Record actual known conditions and source of information. “It was cold” is less useful than a documented preparation step, but missing temperatures must remain unknown rather than being reconstructed from memory.
Explain whether the change was seen before any preparation or only afterward. That distinction helps define the next comparison; it does not establish that preparation caused the problem. Keep a retained unused sample from the same identified lot separate where one is available, and let the investigation owner decide how it should be used.
Copy this complaint handoff record
The fields below are an editorial reporting tool. They help a reviewer ask focused questions; they are not acceptance criteria or a substitute for a product-specific quality procedure.
| Record | What to include |
|---|---|
| Identity | Product/sample ID, order and lot if known, configuration and approved revision |
| Observation | Location, side, appearance, first-observed date and original photograph references |
| History | Known storage, preparation, handling and cleaning steps; identify missing information |
| Extent | Number affected and number actually examined, plus how units were selected |
| Other findings | Leakage, seam opening or other observations recorded separately, without an assumed common cause |
| Samples | Condition and location of complaint units and any identified retained comparison sample |
| Requested response | Responsible investigator, questions to resolve, next evidence and agreed response date |
“Three of twenty examined units” describes the inspection performed. It does not establish the defect rate for a full order unless the selection and assessment support that conclusion. State whether units were randomly selected, chosen because they looked affected, or returned through complaints.
Ask the supplier to resolve three separate questions
Which interface is involved?
Ask for the actual construction identity and the location of the suspected separation. A generic label such as nylon or composite film cannot locate an interface. Material records should connect to the sample, not only to a similar-looking catalog product. Use the ice pack material-family guide for terminology, while keeping this complaint focused on the affected configuration.
The public summary of ASTM F904-22 concerns preparing separated plies for laminate bond assessment. It is not a root-cause diagnosis or a universal ice pack pass limit. Ask the competent reviewer what method, specimens and conditioning apply and how the result will answer the particular complaint.
Is the perimeter seam also affected?
The converted seam needs its own evidence. ASTM F88/F88M-23 addresses seal strength for flexible barrier materials; a seal-strength result should not be substituted for an interlayer finding. Ask the reviewer to distinguish the assessed locations, conditions and observed failure modes.
What is known about the filled pouch?
If leakage or loss of containment is reported, connect the observation to the exact pouch and handling history. The ice pack leak testing guide covers that separate evaluation question. A favorable film or seam result does not close an unresolved filled-pouch complaint.
Evaluate the proposed response before closing the complaint
A replacement film proposal and an explanation of the original observation are different deliverables. Request a response that links the finding to the examined sample and identifies the limits of the investigation. If the cause remains unconfirmed, the response should say what evidence is still needed.
For a proposed corrective change, ask what changes, which identified configuration it covers, and how the change will be assessed. Changing film, fill, pouch shape and sealing process together can make the result difficult to interpret. Agree on the comparison and the scope of any approval instead of treating an attractive replacement sample as proof that the complaint is resolved.
Preserve the original complaint record, supplier response, comparison evidence and final decision together. Use the existing sample approval checklist for approving a revised configuration. Do not quietly replace the old revision in the record; distinguish the original construction from the proposed change.
Frequently asked buyer questions
Does a white line prove delamination?
No. Describe its location and appearance and request assessment of the actual sample. A photograph does not identify the affected interface or establish a cause.
Should we send a peeled sample to show the problem?
Agree on sample preparation with the investigation owner first. Deliberate peeling changes the original condition. Preserve photographs and an unaltered complaint unit where your handling procedure permits.
Can a material substitution close the investigation?
A substitution needs a scoped approval of its own. It does not automatically explain the original observation or establish the suitability of every unit in the order.
Send evidence that supports the next decision
Start with the identified sample, observation timeline, affected location and open questions. For a Cryozin project, send the complaint record and available sample references so the relevant construction and next review can be discussed. Any proposed material change remains subject to project-specific review through the material selection process.
Sources and further reading
- ASTM F904-22: public scope of laminate ply preparation.
- ASTM F88/F88M-23: public scope of flexible-barrier seal strength.
Only public standard summaries were consulted. Actual examinations require appropriate complete methods and competent, product-specific assessment. No Cryozin test, defect rate or certification is asserted.

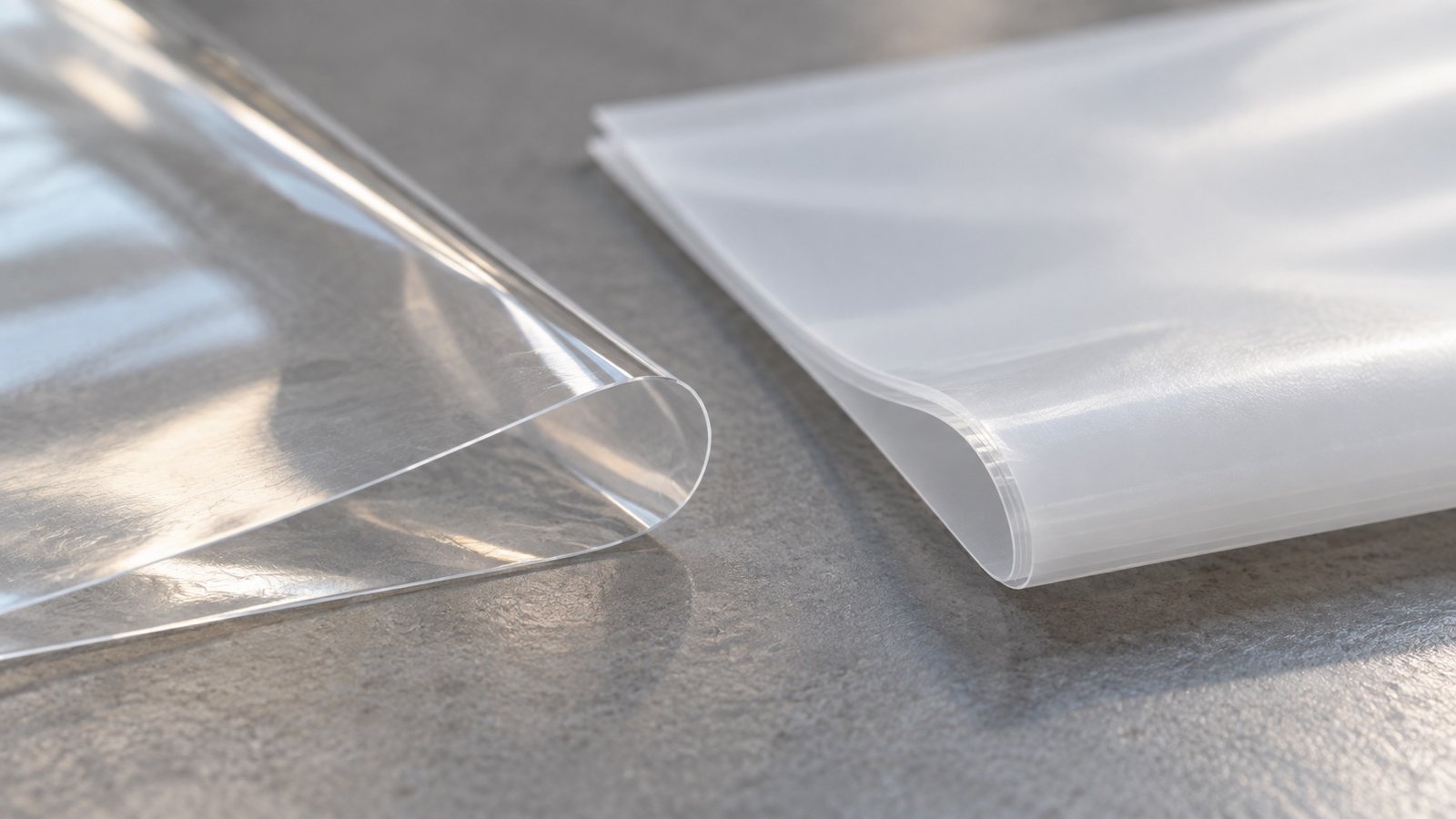

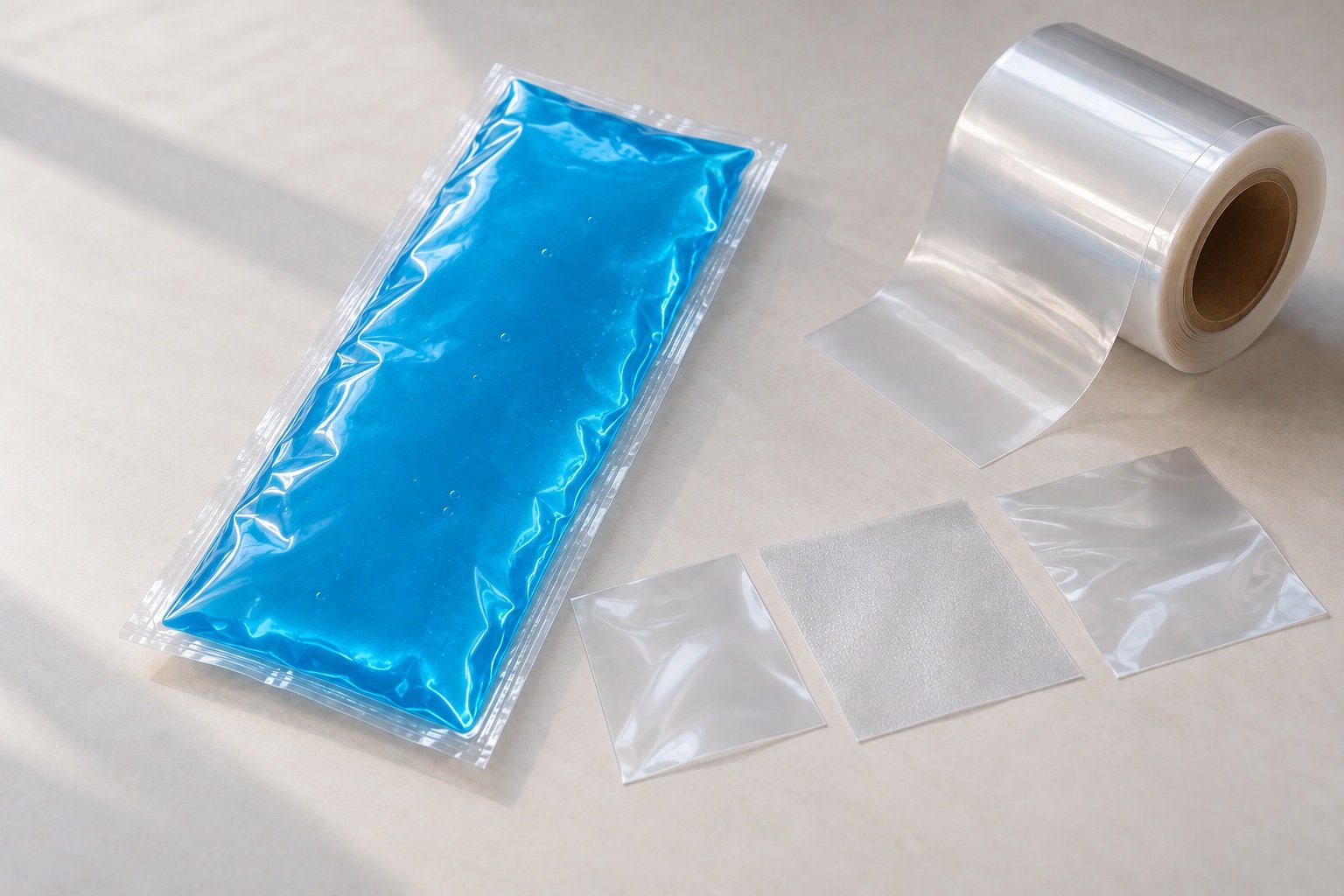

Scene images are editorial concepts based on catalog references, not evidence of a factory, customer project, test or approved configuration. Catalog images illustrate visible product form only.
