“How long does an ice pack stay cold?” sounds like a simple sourcing question. In practice, the answer changes with the pack, the way it is frozen, what it touches, the surrounding temperature, and the point at which a buyer decides it is no longer useful.
That makes cooling duration a test result under defined conditions, not a universal number printed beside a product name. For U.S. brands, wholesalers, product developers, procurement teams, and quality teams, the most useful approach is to define the intended use and compare candidate packs with one documented protocol.
On this page
Quick answer: what affects how long an ice pack stays cold?
The main ice pack cooling duration factors are the pack’s starting temperature, fill mass and thermal behavior, dimensions and surface area, film and cover construction, contact with the load, ambient temperature, airflow, insulation, pack arrangement, and the temperature threshold used to define “cold.” Manufacturing variation and prior freeze-thaw or handling history can add further variation.
A duration claim is meaningful only when it states the test conditions and endpoint. Instead of asking a supplier for one headline number, ask for a temperature-versus-time curve, the full setup, sample count, and result spread. Then repeat the comparison with the actual pack-out or wearable assembly intended for the project.
Why one “stays cold” number rarely transfers between applications
Thermal energy moves from a warmer object or environment toward a colder pack through a combination of conduction, convection, and radiation. NASA’s overview of thermal energy transfer distinguishes these three modes. In an ice pack test, direct contact with a load increases the role of conduction, moving air changes convection, and nearby warm surfaces or sunlight can affect radiation.
The fill stores energy as its temperature rises, and a formulation that changes phase may absorb energy during that transition. The U.S. Department of Energy explains this general principle of latent-heat storage. It does not prove a particular pack’s composition or duration; those require product-specific data.
“Cold” is also not a single endpoint. One buyer may care about the temperature at the pack surface. Another may care about the temperature between a pack and a simulated product. A shipping team may care about whether a payload remains inside a defined range. Those are different measurands and should not be compared as if they were the same.
Eight variables that can change cooling duration
1. Starting temperature and conditioning history
A pack removed from one freezer condition cannot be compared fairly with a pack conditioned differently. Record freezer set point, actual measured temperature, conditioning time, pack orientation, freezer load, and the time between removal and test start. Define whether “conditioned” means a specified time or confirmation that the selected measurement location has stabilized within a stated range.
When the buyer’s question is how long the pack needs to reach its defined starting condition, use the gel ice pack freezing-time guide; in-use cooling duration remains a separate test outcome.
Freezer air temperature alone does not prove that every pack reached the same condition. Use the same loading and spacing method for every comparison.
2. Fill composition, water content, and phase behavior
Fill ingredients influence heat capacity, freezing behavior, viscosity, and flexibility. More fill mass generally provides more material that can absorb energy, but formulation and geometry determine how that capacity is delivered at the surface. A pack that remains pliable after freezing may behave differently from one that becomes rigid.
Do not infer duration from “gel,” “beads,” or “PCM.” Request product-specific evidence. Cryozin’s guide to gel pack flexibility after freezing explains why flexibility should be assessed separately.
3. Fill weight, dimensions, thickness, and shape
Two packs made with similar materials may have different cooling curves because their fill weights and surface-area-to-volume ratios differ. A broad, thin pack can exchange heat over a large area; a compact, thick pack has a different heat-flow path. Segments, weld lines, corners, and channels can redistribute fill and create local temperature differences.
Record total mass, filled dimensions, thickness, chamber pattern, and tolerance. If the pack must fit a sleeve or wrap, test that assembly.
4. Film, laminate, seals, and cover construction
The outer film or laminate contributes thermal resistance and determines how well the pack conforms to a surface. Film thickness, layer structure, surface texture, air gaps, seams, and an added textile cover can all change the measured interface temperature. A cover may slow heat transfer while also changing handling and comfort; neither effect can be assumed without testing the complete system.
For material planning, compare the full construction in Cryozin’s guide to PVC, TPU, and laminated nylon ice packs. Test the same revision used for other approvals.
5. Contact pressure, contact area, and the test load
A pack suspended in still air is not equivalent to a pack pressed against a warmer object. More consistent contact can increase conductive heat transfer. Curved products, uneven gel distribution, straps, covers, and user movement may change the real contact area throughout a test. For large or wearable formats, the comparison of single-chamber and multi-chamber gel pack designs explains how internal welds can affect gel migration, articulation, and usable contact area.
Use a defined, application-relevant fixture. Record its material, mass, geometry, starting temperature, and pressure. If a repeatable laboratory fixture does not represent use, state that limitation and add an application-representative test.
6. Ambient temperature, airflow, humidity, and radiant exposure
A warm room increases the temperature difference driving heat into a cold pack. Forced air can change convective heat transfer compared with still air. Direct sun, a warm vehicle interior, nearby equipment, or an open freezer door can add exposure that a climate-controlled bench test does not reproduce. Humidity can produce condensation, but condensation alone is not a reliable measure of remaining cooling capacity.
Measure ambient temperature near the test article. Record controlled airflow, relevant humidity, and radiant exposure. Outdoor or transport uses may require a chamber profile.
7. Insulation, packaging, pack count, and arrangement
An uncovered therapy pack, a pack inside a fabric sleeve, and several packs arranged around a payload are different systems. Insulation thickness, void space, payload mass, carton dimensions, pack position, and the number of packs can materially change the result.
For shipping-system qualification, use the actual packaging and payload whenever possible. ASTM’s current D3103 test method notes that package insulation, the energy source, and the payload affect heat transfer, and advises using the actual package or close physical substitutes. ISTA lists 7D and 7E thermal transport procedures for packaged-product temperature exposure. A simple ice-pack bench comparison is not a substitute for a distribution-package qualification.
8. Sample variation, aging, and handling history
Fill-weight tolerance, chamber distribution, film thickness, and sealing variation can create unit-to-unit differences. Prior puncture, abrasion, compression, storage, or freeze-thaw history may also affect the physical condition of a sample. A single “best” unit cannot describe a production lot.
Identify each specimen, lot or sample stage, mass, and history. Keep new and durability-conditioned samples in clearly labeled groups.
A repeatable B2B cooling-duration test protocol
The following protocol is a practical framework for comparing product candidates. It is not a universal regulatory standard, and its settings must be chosen for the intended use. Product owners should involve qualified test or regulatory personnel when a result will support safety, medical, transport, or compliance claims.
Step 1: Write the use case and decision first
State whether the test supports product selection, sample approval, change control, incoming inspection, or a customer-facing claim. Describe the real assembly: pack alone, pack with cover, wearable wrap, cooler, carton, or insulated shipper. Name the decision the data must support.
Step 2: Define the measurand and endpoint
Specify exactly where temperature is measured and what ends the test. An endpoint might be the elapsed time until a defined sensor location crosses a project-specific temperature threshold. That threshold should come from the product brief or validated application requirement—not from a generic internet claim. For multi-sensor work, define which sensor governs and how temporary crossings are handled before testing begins.
Step 3: Select and identify representative samples
Choose units that match the actual proposed construction, including fill weight, film, chambers, cover, and packaging. Determine sample count from the risk and statistical plan. At minimum, use enough separate units to see whether the result is consistent rather than relying on one favorable sample. NIST’s measurement guidance emphasizes evaluating repeatability, reproducibility, stability, and uncertainty.
Step 4: Standardize conditioning
Document equipment, measured condition, loading pattern, spacing, orientation, duration, and removal sequence. Apply one start rule; record and balance run order when specimens are tested separately.
Step 5: Control the environment and fixture
Use a chamber or a monitored room with a defined allowable range. Position the ambient sensor consistently. Prepare the test load to the same starting temperature and use the same fixture, pressure, cover, and insulation. Photograph the setup so another technician can reproduce it.
Step 6: Use suitable, calibrated temperature measurement
Select sensors and a logger with range, resolution, response time, and uncertainty appropriate to the threshold. Place sensors consistently and secure them without creating a large insulating layer or changing contact pressure. Keep a current calibration record.
NIST explains that metrological traceability requires a documented chain of calibrations with associated uncertainty; a “calibrated” label alone does not make every later result traceable. See NIST’s metrological traceability guidance. Record sensor IDs, calibration status, logger settings, and any correction applied.
Step 7: Log the complete curve
Choose a fixed interval short enough to show meaningful changes around the endpoint. Record ambient and test-location temperatures from before contact until every specimen reaches the defined stop rule. Avoid opening the chamber or adjusting the pack mid-run unless that action is part of the protocol.
Step 8: Analyze variation, not only the average
Report the duration for every specimen, plus a suitable summary such as median, minimum, maximum, and spread. Include the actual cooling curves. If two designs differ by less than the measurement uncertainty and run-to-run variation, the data may not support declaring one better.
Step 9: Review deviations and approve the report
Record deviations, predefine invalid-run rules, and preserve raw data, photos, sample IDs, calculations, and the approved report.
What to capture in the test record
| Record | Minimum useful detail | Why buyers need it |
|---|---|---|
| Product identity | Sample ID, revision, lot, dimensions, fill mass, total mass, construction | Prevents results from being assigned to a different version |
| Conditioning | Equipment, measured temperature, time, position, spacing, removal-to-start delay | Makes starting state comparable |
| Use simulation | Load or fixture, starting temperature, contact area, pressure, cover, insulation, pack arrangement | Defines the heat load seen by the pack |
| Environment | Ambient profile, sensor position, airflow, humidity or radiant exposure when relevant | Explains external heat input |
| Measurement | Sensor and logger IDs, locations, interval, calibration status, uncertainty | Supports confidence in the recorded curve |
| Endpoint | Temperature threshold, governing sensor, crossing rule, stop rule | Turns “cold” into a reproducible decision |
| Results | Raw data, curves, result per unit, spread, deviations, photos | Shows variation instead of a selective headline |
How buyers should interpret a cooling curve
Look beyond elapsed time. Curves can differ before crossing the same threshold. Compare them only when endpoints, sensors, starting conditions, environments, and loads match. If results vary widely, investigate construction, conditioning, placement, and measurement before changing the specification.
A duration test also does not establish leak resistance, burst strength, skin-contact safety, medical effectiveness, or shipping compliance. Those questions need separate acceptance criteria and evidence. Cryozin’s bulk-order ice pack quality guide provides a broader framework for reviewing appearance, dimensions, seals, handling, packaging, and documentation alongside thermal performance.
Buyer checklist before accepting a cooling-duration claim
- Is “cold” defined by a specific sensor location and temperature threshold?
- Does the sample match the quoted fill, film, dimensions, chambers, cover, and pack-out?
- Are the conditioning temperature, time, orientation, and start delay recorded?
- Does the fixture or payload represent the intended application?
- Are ambient temperature, airflow, insulation, and pack arrangement controlled?
- Are sensor location, logger interval, calibration, and uncertainty documented?
- Were multiple units tested, with individual results and spread reported?
- Are raw curves, photos, sample IDs, and deviations available?
- Will the same method be used for approval samples and later change control?
- Is the claim limited to the tested configuration and conditions?

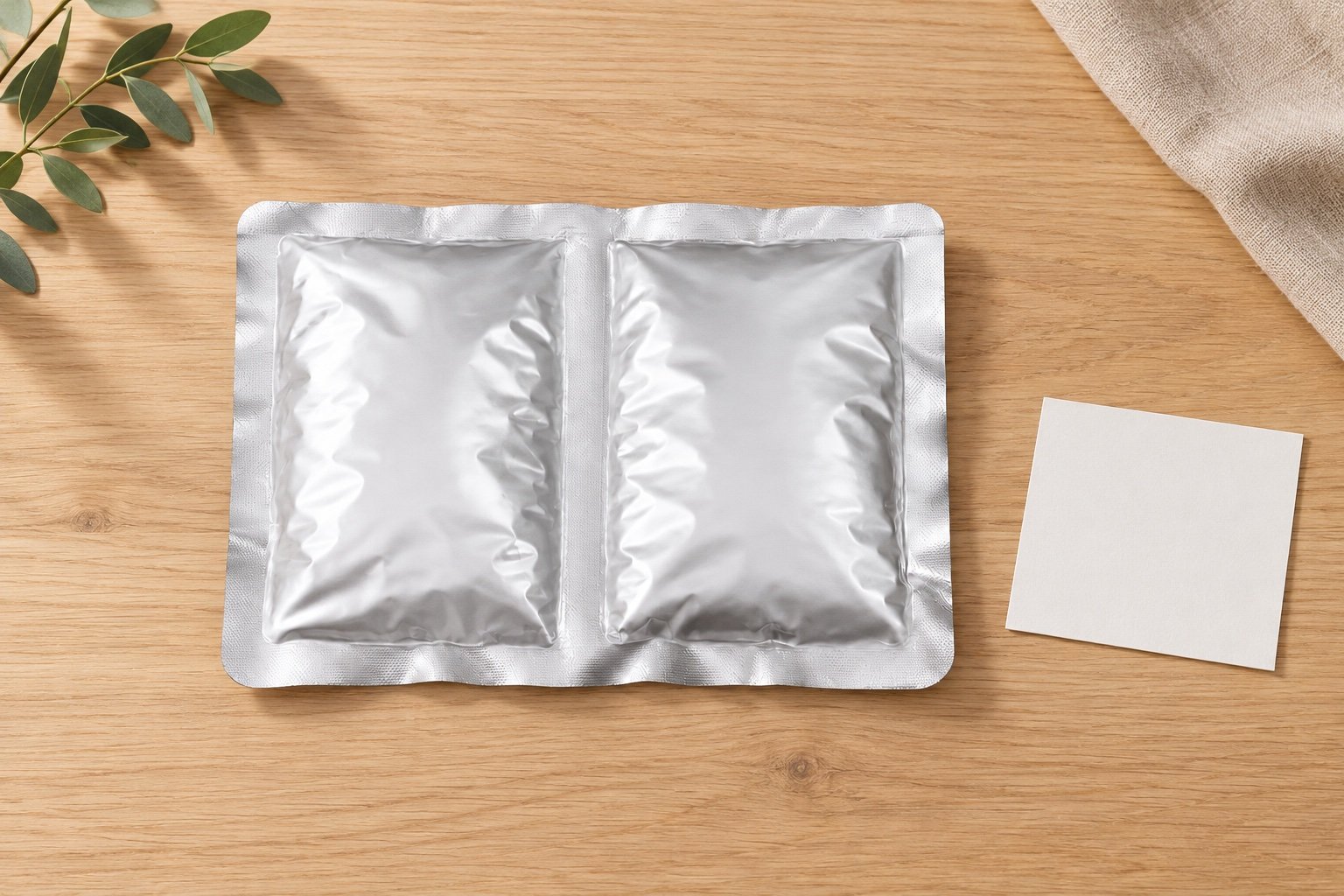

Related product references: For transport and outdoor formats, review the foil ice pack category and a reusable aluminum-foil ice pack format. Cooling duration should be verified under the buyer’s defined test conditions rather than inferred from product type alone.
Turn the result into a useful product specification
Once a protocol is stable, reference it in the product specification by document number and revision. Define the sample stage, acceptance rule, conditioning window, fixture, environment, sensors, and reporting format. State whether later verification uses the full protocol or a validated abbreviated check.
Include these requirements when requesting quotations so suppliers compare the same target. Cryozin’s guide to comparing ice pack manufacturer quotes explains why performance evidence, sample assumptions, and test scope belong beside unit price. If a construction change affects fill mass, dimensions, film, chamber layout, cover, or packaging, assess whether cooling-duration testing must be repeated.
For a custom project, send Cryozin the intended use, finished dimensions, target fill weight, material or cover concept, storage condition, expected environment, and the temperature endpoint your team needs to evaluate. Contact Cryozin to discuss a sample and test brief. Any duration statement should remain tied to the final approved product and the conditions under which it was measured.
Sources & Further Reading
- NASA — Thermal Energy Transfer
- U.S. Department of Energy — Latent-Heat Storage
- ASTM D3103 — Thermal Insulation Performance of Distribution Packages
- ISTA — Package-Testing Procedures, Including Thermal Transport Procedures
- NIST/SEMATECH — Measurement Process Characterization
- NIST — Metrological Traceability Guidance
Sources accessed September 7, 2026. Cooling-duration results depend on the complete pack, conditioning, load, container, ambient environment, sensors, method, and acceptance rule; results are not transferable without comparable conditions.
